JM-VL01

Vehicle Tracker

LTE Vehicle Terminal

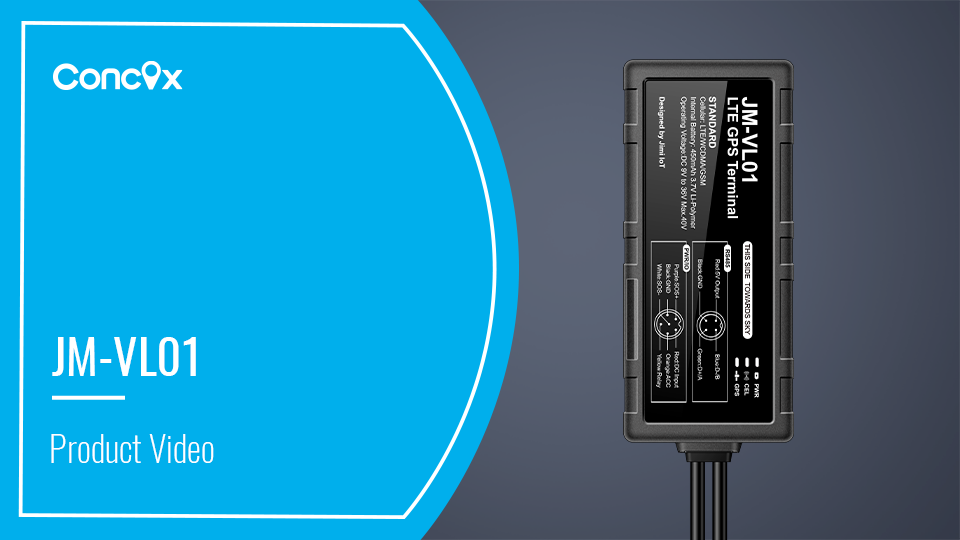

JM-VL01 LTE Vehicle Terminal Concox

JM-VL01 LTE Vehicle Terminal

JM-VL01 is a powerful and easy to install 4G GPS tracker that gives you actionable telematics insights. In addition to standard functions such as GPS location and geo-fence alerts, the JM-VL01 can also act as a WiFi hotspot.,Improve the performance of your fleet business today with the feature rich and lightning fast JM-VL01.

Share to:

Feature

LTE, UMTS & GSM Network
The device can receive and transmit data in the coverage of 4G, 3G, and 2G network.
Driving Behavior Analysis (Basic)
Receive alerts when any of 4 kinds of dangerous driving behavior is detected.
WiFi Hotspot Feature
Form WiFi coverage on vehicle, so that other devices such as ECU can connect to network.
Ignition Detection
Constant, real-time ACC/ignition status from the vehicle.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
RS485 Fuel Sensor (Optional)
Quickly get notified when fuel level is harshly changing.
RS485 Temperature Sensor (Optional)
Prevent the rot and damage leading by excessive temperature.
Panic Button
Contact dispatch or emergency support with a discreet, in-cabin SOS button.

Spec


GNSS


Positioning system GPS+WiFi
Frequency L1
Positioning accuracy <2.5m CEP
Track sensitivity -162dBm
Acquisition sensitivity -149dBm
TTFF (open sky) Avg. hot start ≤1sec
Avg. cold start ≤45sec


Cellular


Communication network LTE/UMTS/GSM
Frequency JM-VL01LA:
LTE: B1/B2/B3/B4/B5/B7/B8/B28AB
UMTS/HSPA: 850/900/1900/2100 MHz
GSM: 850/900/1800/1900 MHz
JM-VL01A:
LTE: B2/B4/B5/B7/B12/B66
UMTS/HSPA: 850/1900 MHz
GSM: 850/1900 MHz
JM-VL01E:
LTE: B1/B3/B5/B7/B8/B20/B28A
UMTS/HSPA: 900/1900/2100 MHz
GSM: 900/1800 MHz


Power


Battery 450mAh/3.7V industrial-grade Li-Polymer battery
Input voltage 9-36VDC



Interface



LED indication GNSS (Blue), Cellular (Green), Power (Red)
SIM Micro-SIM
Data storage 4GB+2Gb
Digital inputs ACC, SOS
Digital outputs Relay



Physical specification



Dimensions 113.0 x 51.0 x 20.0mm
Weight 105g


Operating environment


Operating temperature –20℃ to +70℃
IP rating IP65


Feature


Sensors Accelerometer
Scenarios Vehicle movement alert, Over-speed alert, Geo-fence, Vehicle battery detection, Power supply disconnection
Driving behavior analysis Harsh acceleration, Harsh braking, Harsh cornering, Collision
WiFi hotspot 2.4GHz

* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
