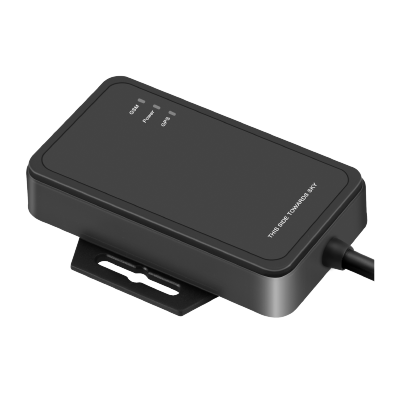

The JM-VG01U is an advanced vehicle tracker device with great analytical capacity. With a 3-axis accelerometer and 3-axis gyroscope, it can detect 8 types of improper driving behaviors. Automatic computing based on an algorithm ensures the vehicle location even in non-GPS areas. Its flexible and improved alert system increases safety and security while effectively reducing false alert ratio.
![vehicle tracking device](https://www.iconcox.com/wp-content/uploads/2022/09/JM-VG01U-1.png)
The JM-VG01U is an advanced vehicle tracker device with great analytical capacity. With a 3-axis accelerometer and 3-axis gyroscope, it can detect 8 types of improper driving behaviors. Automatic computing based on an algorithm ensures the vehicle location even in non-GPS areas. Its flexible and improved alert system increases safety and security while effectively reducing false alert ratio.
![INS-aided GPS Tracking INS-aided GPS Tracking](https://www.iconcox.com/wp-content/uploads/2022/09/INS-aided-GPS-Tracking.png)
![Driving Behavior Analysis (Advanced) Driving Behavior Analysis (Advanced)](https://www.iconcox.com/wp-content/uploads/2022/09/Driving-Behavior-Analysis-Advanced.png)
![Mileage Accuracy ≥98% Mileage Accuracy ≥98%](https://www.iconcox.com/wp-content/uploads/2022/09/Mileage-Accuracy-≥98.png)
![6-axis Accelerometer & Gyroscope 6-axis Accelerometer & Gyroscope](https://www.iconcox.com/wp-content/uploads/elementor/thumbs/6-axis-Accelerometer-Gyroscope-px4vmfb4c90ee9t5ucwviqm0nsj5siafarpktbi9kw.png)
![Ignition Detection Ignition Detection](https://www.iconcox.com/wp-content/uploads/elementor/thumbs/Ignition-Detection-px4vnzpfqb5lqvj8p1ahocdoawt6mcibiiuplx6n7k.png)
![Panic Button Panic Button](https://www.iconcox.com/wp-content/uploads/elementor/thumbs/Panic-Button-1-px4vpk3r4dat3h9bjpo3ty5by137g6q7q9zueiv0u8.png)
![Remote Cut-Off (Fuel_Power) Remote Cut-Off (Fuel_Power)](https://www.iconcox.com/wp-content/uploads/2022/09/Remote-Cut-Off-Fuel_Power.png)
![IP65 Dust & Water Resistance IP65 Dust & Water Resistance](https://www.iconcox.com/wp-content/uploads/2022/09/IP65-Dust-Water-Resistance.png)
GNSS | |
Positioning system | GPS/GLONASS/GALILEO, LBS assisted INS (inertial navigation system) |
Frequency | L1 |
Positioning accuracy | <2.5m CEP |
Tracking sensitivity | -165dBm |
Acquisition sensitivity | -148dBm |
TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
Cellular | |
Communication network | GSM |
Frequency | Quad-band 850/900/1800/1900 MHz |
Power | |
Battery | 450mAh/3.7V industrial-grade Li-Polymer battery |
Input voltage | 9-36VDC |
Interface | |
LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
SIM | Micro-SIM |
Data storage | 32+32Mb |
Digital inputs | ACC, SOS |
Digital outputs | Relay |
Physical specification | |
Dimensions | 80.0 x 67.0 x 16.0mm |
Weight | 63g |
Operating environment | |
Operating temperature | –20℃ to +70℃ |
Operating humidity | 5%~95%, non-condensing |
IP rating | IP65 |
Feature | |
Sensors | Accelerometer and gyroscope |
Scenarios | Vibrating Alert, Vehicle movement alert, Over-speed alert, Geo-fence, SOS call, Power supply disconnection |
Driving behavior analysis | Harsh acceleration, Harsh braking, Harsh cornering, Sudden lane change, Collision, Skidding, Rollover, Roll & pitch |
* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
