The VL505 is an ultra-compact plug-and-play 4G OBD tracking unit designed for use in both private cars and commercial fleets. Its 4G connectivity ensures real-time data transmission; while the multi-source positioning (GPS, BDS, and LBS) provides accurate location tracking. In addition, the VL505 offers an array of valuable alerts, including geofencing, unexpected vibration, speeding, and power failure, ensuring 24/7 protection for your fleet vehicles and cargo as long as it remains connected. It is a proper choice if you want to increase efficiency, reduce costs, and enhance security.
The VL505 is an ultra-compact plug-and-play 4G OBD tracking unit designed for use in both private cars and commercial fleets. Its 4G connectivity ensures real-time data transmission; while the multi-source positioning (GPS, BDS, and LBS) provides accurate location tracking. In addition, the VL505 offers an array of valuable alerts, including geofencing, unexpected vibration, speeding, and power failure, ensuring 24/7 protection for your fleet vehicles and cargo as long as it remains connected. It is a proper choice if you want to increase efficiency, reduce costs, and enhance security.
FEATURES
SPECIFICATIONS
DOWNLOADS
Plug and Play
Effortless installation through the vehicle's OBD II port, ensuring reliable power supply and operation.
Ultra-Compact Design
The unit is only 1.7cm in height when being inserted into the OBD port, making it hard to notice.
4G LTE Connectivity
Enable real-time monitoring of the vehicle being tracked.
Multi-source Positioning
A synergy of multiple positioning systems (GPS, BDS, AGPS, and LBS) ensures that locations are accurately displayed on the cloud platform.
Driving Behavior Analysis (Basic)
Receive alerts when any of 4 kinds of dangerous driving behavior (harsh acceleration, harsh braking, harsh cornering, collision) is detected.
Remote Recording
Inconspicuous mic allows for remote recording of ambient sounds around the device.
9-36V Operating Voltage
Compatible with a wide range of input voltage, able to work on diverse vehicles.
Multiple Alerts
Instant alerts for atypical events such as speeding, unexpected vibration, power supply disconnection, geo-fence entry/exit, etc.
| Positioning & Location | |
| Technology | GPS, BDS, AGPS, LBS |
| Accuracy | <2.5m CEP |
| Tracking sensitivity | –163dBm |
| Acquisition sensitivity | –158dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤28sec |
| Cellular | |
| Technology | LTE Cat 1 |
| Frequency | VL505-NA LTE-FDD: B2/B4/B5/B7/B12/B14/B17/B25/B26/B66 LTE-TDD: B41VL505-EU LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 |
| Power | |
| Battery | 50mAh/3.7V |
| Input voltage | 9–36VDC |
| Power consumption | Standby: 2mA Working: 35mA (one update per 10s) |
| Operating environment | |
| Operating temperature | –20°C to 70°C |
| Operating humidity | 5% to 95%, non-condensing |
| IP rating | N/A |
| Physical specification | |
| Dimensions | 45.0 x 30.0 x 22.5mm |
| Weight | 26g |
| Interface | |
| LED indication | Power (Red), GNSS (Blue), Cellular (Green) |
| SIM | eSIM |
| Digital I/Os | N/A |
| Analog I/Os | N/A |
| Voltage detection | N/A |
| Memory capacity | 400 GPS data entries |
| USB | N/A |
| Microphone | Onboard |
| No. of relays | N/A |
| GNSS antenna | Internal |
| Bluetooth antenna | N/A |
| Serial ports | N/A |
| Feature | |
| Voice monitoring range | ≤5 meters |
| Sensors | Accelerometer |
| Scenarios | Vibrating alert, Over-Speed, Collision, Geo-fence entry & exit alert, Power-on, Device pull-out, GPS blind spot alert |
| Driving behavior analysis (DBA) | Harsh acceleration, Harsh braking, Harsh cornering, Collision |
| Bluetooth | N/A |
| Configuration support | SMS, Tracksolid Pro |
| Certification | FCC, CE |
*Optional Configuration required to be customized or purchased separately.
APPLICATIONS
Fleet Management
Individual Vehicle Management
Usage-Based Insurance (UBI)
APPLICATIONS
Fleet Management
Individual Vehicle Management
Usage-Based Insurance (UBI)

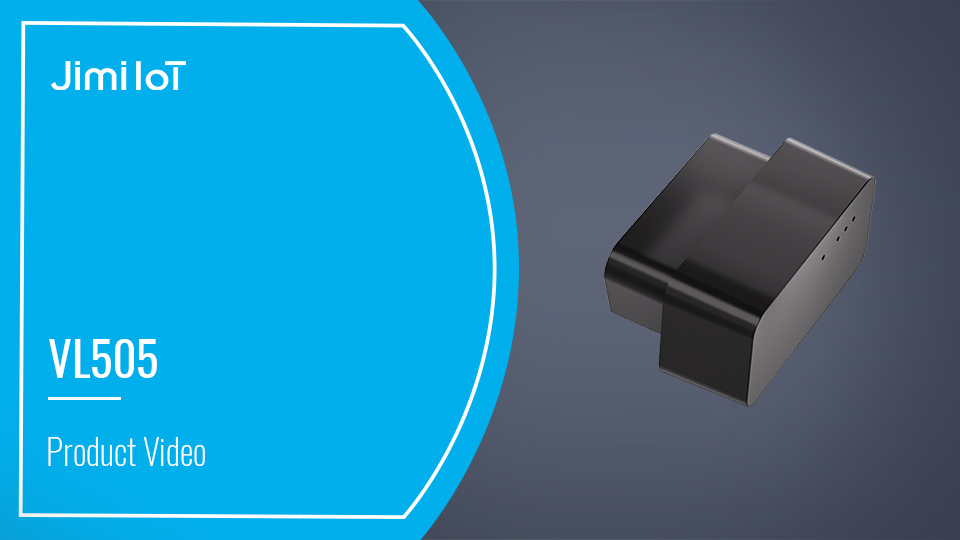

VIDEO
