The PL200 is a small and light 4G tracker for mobile workforce management. Its IP65 rated enclosure makes it suitable for carrying around in almost all weather. On a single charge, the device can operate for up to five days by switching between step-count-based and regular GPS modes. Furthermore, the PL200’s text-to-speech (TTS), two-way voice calls, whitelist settings and step counter make it an ideal solution for managing lone workers like sanitation workers, street cleaners and security guards.
The PL200 is a small and light 4G tracker for mobile workforce management. Its IP65 rated enclosure makes it suitable for carrying around in almost all weather. On a single charge, the device can operate for up to five days by switching between step-count-based and regular GPS modes. Furthermore, the PL200’s text-to-speech (TTS), two-way voice calls, whitelist settings and step counter make it an ideal solution for managing lone workers like sanitation workers, street cleaners and security guards.
FEATURES
SPECIFICATIONS
DOWNLOADS
Two-Way Communication
Enable workers to make speed-dials to two important contacts with this device.
LTE & GSM Network
Stable communication via IoT-specific 4G LTE networks with 2G fallback.
GPS & BDS & GLONASS Positioning
A synergy of multiple positioning systems ensures the location to be accurately displayed on the cloud platform.
Step Counter
A step can wake up to device to continuously count the steps taken and upload the data to the cloud platform.
Multiple Working Modes
Configurable working modes according to your actual demands
Panic Button
Enable workers to ask for immediate help with a single press.
Remote Listen-in
Inconspicuous mic allows for remote audio monitoring of the environment around the device.
Multiple Alerts
Instant alerts for specific events such as device power-on or shutdown, low battery, SIM card change, etc.
| GNSS | |
| Positioning system | GPS+BDS+GLONASS+LBS+BLE+AGPS |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | –165dBm |
| Acquisition sensitivity | –148dBm |
| TTFF (open sky) | Avg. hot start ≤ 1sec |
| Avg. cold start ≤ 32sec | |
| Cellular | |
| Communication network | 4G Cat 1 & GSM |
| Frequency | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28
GSM: 850/900/1800/1900 MHz |
| Power | |
| Battery | 2,000mAh/3.7V industrial-grade Li-Polymer battery |
| Working modes | Mode 0: Step-count-based mode
Mode 1: Regular GPS mode |
| Standby time | Up to 5 days |
| Interface | |
| LED indication | Power (Red), Notice (Green) |
| Button | 2 functional buttons, 1 panic button |
| SIM | Nano-SIM |
| Physical specification | |
| Dimensions | 105.0 x 62.0 x 13.0mm |
| Weight | 81g |
| Operating environment | |
| Operating temperature | –20℃ to +60℃ |
| IP rating | IP65 |
| Feature | |
| Sensors | Accelerometer |
| Scenarios | Power on alert, Shut down alert, Low battery alert, SOS alert, SIM card change alert |
* We reserve the right to the final interpretation for this product. All information is for reference only and is subject to change without further notice.
APPLICATIONS
Sanitation Workers
Street Cleaners
Security Guards
APPLICATIONS
Sanitation Workers
Street Cleaners
Security Guards

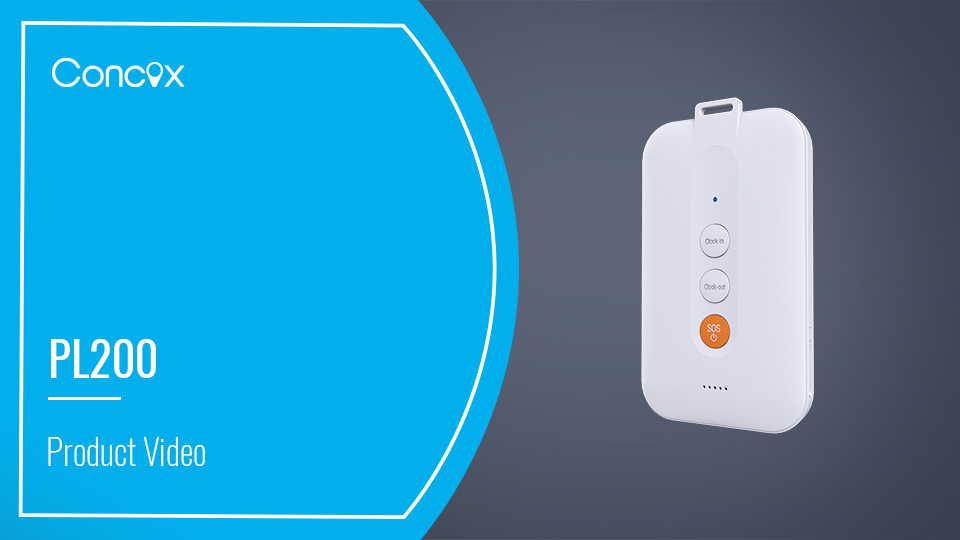

VIDEO
