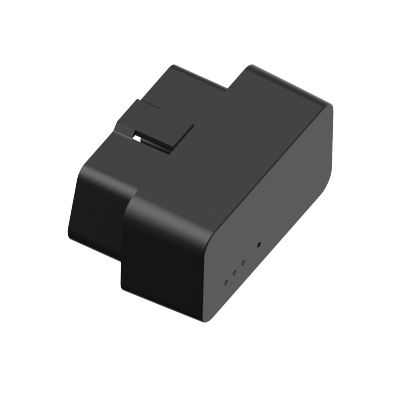

OB22 Plug & Play OBD GPS Tracker

OB22 is an easy to fit plug & play OBD port tracker with superior location, tracking, reporting, logging, and security capabilities. Utilizing the GSM and GPRS communication network along with GPS technology, it is an ideal solution for leased vehicles or large fleets.

Share to:

Feature

  • GPS+LBS+positioning Allow the location to be pinpointed accurately and rapidly
  • Plug out alarm Alarm triggered if it is plugged out from the car
  • Voice monitoring Listen to the surroundings by sending a text messge
  • ACC detection for ignition status Be aware of the ignition status whenever you need
  • Multiple alarms Receive notices for overspeed. geo-fence violation, etc
  • Compact size No bigger than a VISA card and easy to carry



Spec


GSM Specification
GSM frequency 850/900/1800/1900 MHz
GPRS Class 12, TCP/IP
Memory 32+32Mb
Phase error RMSPE<5,PPE<20
Max output GSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3Bm
Max frequency error ±0.1ppm


GPS Specification
GPS chipset MTK high sensitivity chip
Frequency L1,1575.42MHz C/A code
GPS channel 66
Location accuracy <10 meters
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start≤1sec
Avg. cold start≤32sec



Others
Antenna Bullit-in GPS antenna, GSM quad-band antenna
Battery 50mAh/3.7v lithium-polymer battery
Working voltage/current 9-36VDC/32mA(12VDC)
Connector OBD standard port
Standby current ≤ 5mA
Operating temperature -20℃～ 70℃
Dimensions 45.0(L)*22.5(W)*30.0(H)mm
Operating humidity 45.0×22.5×30.0mm
Weight 30g
LED indicator Power, GPS, GSM
Voice monitoring range ≤5meters
