LL701

Asset Management Terminal

The LL701 is a Long-Standby Asset Tracker designed for the management of heavy-duty vehicles. Using the CR123A battery allows for more availability and better portability, and the replaceable battery design can help fleet managers effectively reduce fleet maintenance costs. Depending on reporting frequency, its low consumption can provide up to 5 years of working time on 3 batteries, while it also supports an external power supply for longer working life. In addition to these features, the IP67 waterproof rating and the suite of event-triggered alerts will make the LL701 a perfect solution for non-real-time tracking of heavy-duty vehicles, goods and other assets.

LL701
Asset Management Terminal

The LL701 is a Long-Standby Asset Tracker designed for the management of heavy-duty vehicles. Using the CR123A battery allows for more availability and better portability, and the replaceable battery design can help fleet managers effectively reduce fleet maintenance costs. Depending on reporting frequency, its low consumption can provide up to 5 years of working time on 3 batteries, while it also supports an external power supply for longer working life. In addition to these features, the IP67 waterproof rating and the suite of event-triggered alerts will make the LL701 a perfect solution for non-real-time tracking of heavy-duty vehicles, goods and other assets.

FEATURES
SPECIFICATIONS
DOWNLOADS
Ultra-Long Standby
Ultra-Long Standby
Low location reporting frequency allows for standby times up to 5 years.
Tamper Alert、Cover Dismantlement Alarm
Tamper Alert
Receive a tamper alert when the light sensor detects device removal.
Replaceable Battery
Replaceable Battery
CR123A battery offers the user much better portability and ease of installation.
Bluetooth Configuration、Bluetooth Accessory Compatibility (Optional)
Bluetooth Configuration
Fast and simple device configuration via app for iOS.
Unpacking Alert
Unpacking Alert
Light sensor will be triggered and send an alert when the package has been unpacked.
IP67 Dust & Water Resistance
IP67 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
GNSS
Positioning system GPS+QZSS, LBS assisted (optional)
Positioning accuracy <2.5m CEP
Tracking sensitivity –155dBm
Acquisition sensitivity –145.5 dBm (cold) / –147.0 dBm (hot)
TTFF (open sky) Avg. hot start ≤1sec
Avg. cold start ≤36sec
Cellular
Communication network LTE-M Cat-M1 & NB/NB2
Frequency Cat-M1: B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B66
Cat-NB1/NB2: B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66
Power
Battery CR123A Lithium battery
Working modes Mode 2: Power-saving mode
Mode 3: Regular GPS mode
Mode 4: Intelligent positioning mode
Standby time Up to 5 years (one GPS fix per day)
Interface
LED indication GNSS (Blue), Cellular (Green), Power (Red)
SIM Micro-SIM
Tamper proof Light sensor
Physical specification
Dimensions 110.2 x 53.0 x 34.5mm
Weight 84.8g (without battery)
Operating environment
Operating temperature –20℃ to +60℃
IP rating IP67
Feature
Sensors Light sensor, accelerometer
Bluetooth Support BLE 5.0 protocol
Geo-fence GNSS/Bluetooth
Scenarios Tamper alert, Installation alert, Geo-fence entry/exit alert, Unpacking alert

* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.

APPLICATIONS
Trailer Tracking
Construction Machinery
Fleet Management
APPLICATIONS
Trailer Tracking
Construction Machinery
Fleet Management

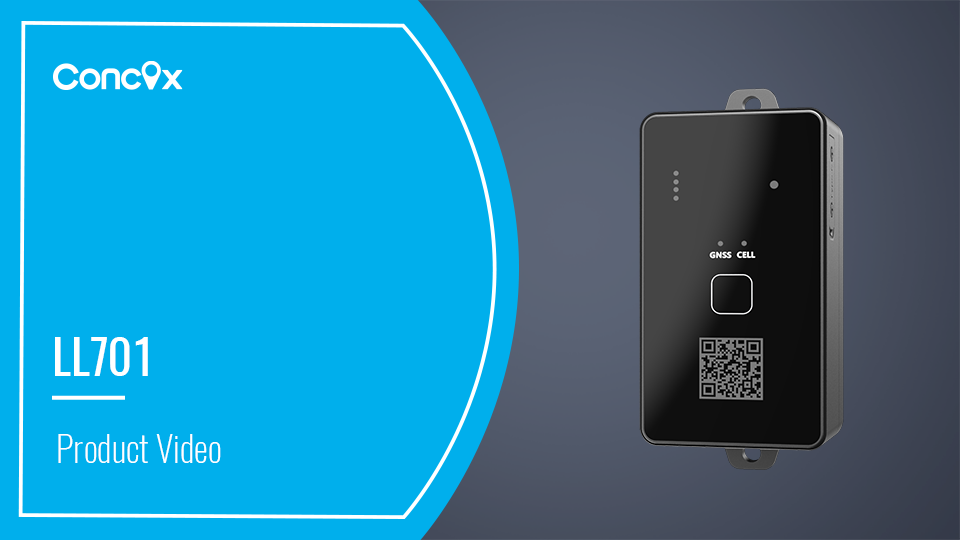

VIDEO
