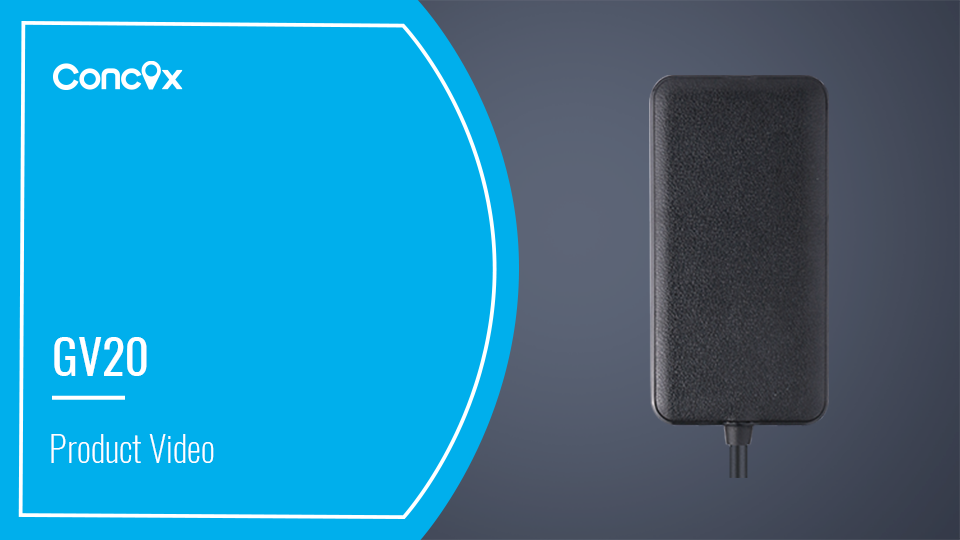

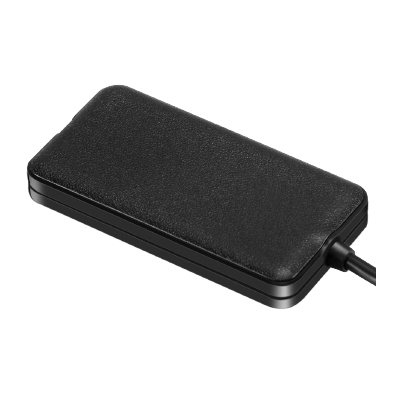

GV20 3G Vehicle GPS Tracker

With the finest craftsmanship, GV20 is a fully-featured, highly competitive and cost-effective 3G GPS tracker developed for vehicle, motor and bus tracking. It offers you crystal clear real-time tracking details, including location, route, flashback, etc., even in tough environment. It supports remote fuel/power cutoff and gives you insight on ignition status. Wherever you go, its instant alert notifications allow you to react accordingly and immediately.

Share to:

Feature

  • WCDMA & GSM 3G network for outstanding coverage
  • GPS+LBS tracking Allow the location to be pinpointed in real time or periodically
  • IPx5 dust and waterproof Water-resistant to ensure stable operation in tough environment
  • Remotely cut off fuel/power Compel the vehicle to stop by breaking off the fuel connection
  • Tamper alert Be notified of any unauthorized displacement from original installation
  • 9-90V voltage range Wide operating voltage applicable to all types of vehicles
  • ACC detection for ignition status Be aware of the igniton status whenever you need
  • Vehicle battery protection Never drain out of the battery of moforcycle for optimal protection



Spec


GSM Specification
Frequency WCDMA 850/900/1900/2100MHz
GSM 850/900/1800/1900 MHz
Communication system WCDMA/GSM
GPRS Class 12, TCP/IP
Memory 32+32Mb
Phase error RMSPE<5,PPE<20
Max output GSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3Bm
Max frequency error ±0.1ppm


GPS Specification
GPS chipset Ublox
Frequency L1,1575.42MHz C/A code
GPS channel 66
Location accuracy <10 meters
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start≤1sec
Avg. cold start≤35sec

Function & Package
Standby current 5mA/12VDC
Battery 400mAh/3.7V
LED Indicator GPS(blue), GSM(green), Power(red)
Working Voltage/current 9-90VDC/31mA(12VDC) 19mA(24VDC)
Operating Temperature -20℃~ 70℃
Dimension 88(L) ×43.0 (W) ×13.0 (H) mm
Weight 60g
