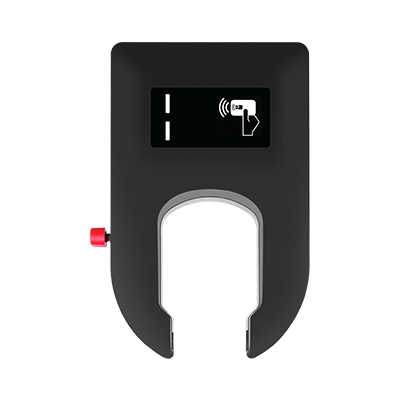

JM-BL11

LTE Cat M1/NB2 GNSS Sharing Bike Lock
bike sharing solution

The JM-BL11 GPS bike sharing lock is an optimized hardware for bike sharing solution powered by Cat M1/NB2 low power consumption technology, reinforced structure, and enhanced data security protection, enabling faster projects implementation and easier bike maintenance, as well as better user experience.

JM-BL11
LTE Cat M1/NB2 GNSS Sharing Bike Lock
bike sharing solution

The JM-BL11 GPS bike sharing lock is an optimized hardware for bike sharing solution powered by Cat M1/NB2 low power consumption technology, reinforced structure, and enhanced data security protection, enabling faster projects implementation and easier bike maintenance, as well as better user experience.

FEATURES
SPECIFICATIONS
DOWNLOADS
GPS & WiFi & LBS Positioning、GPS & BDS & LBS & Wi-Fi Positioning、GPS & LBS Positioning
GPS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
Quick & Simple Unlocking
Quick & Simple Unlocking
You can unlock this device via bluetooth or by scanning QR code on a designated app.
Solar & Magnetic Charging、Solar Powered
Solar Powered
A solar panel converts sunlight into electricity that can be used to power this device.
Large 10,000mAh Battery、2,800mAh Disposable Battery
Large 10,000mAh Battery
High capacity along with solar-powered energy ensures the electricity never drains out.
Rugged and Durable Design
Rugged and Durable Design
Rugged case and reliable fixing make it hard to damage this device without professional tools.
IP66 Dust & Water Resistance
IP66 Dust and Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Vibrating Alert
Vibrating Alert
You'll get notified if the vibration reaches threshold, such as drilling, hammering, or stealing bike.
TLS Data Encryption
TLS Data Encryption
Most widely deployed security protocol between two communicating applications.
GNSS
Positioning system GPS+AGPS+LBS
Positioning accuracy <2.5m CEP
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start ≤1sec
Avg. cold start ≤40sec
Cellular
Communication network LTE + EGPRS
Frequency JM-BL11E:
LTE Cat-M1/NB: B1/B3/B5/B8/B18/B19/B20/B26
EGPRS: 850/ 900/1800/1900 MHz
JM-BL11A:
LTE Cat-M1/NB: B1/B2/B3/B4/B5/B12/B13/B28/B66
EGPRS: 850/ 900/1800/1900 MHz
Power
Battery 10,000mAh/3.7V industrial-grade Li-polymer battery
Solar power 6V/5W (Under solar illumination)
Working modes Tracking mode
Standby time Up to 40 days in locked state (without solar energy)
Interface
LED indication 2 x Status indicators (Green/Orange)
SIM Micro-SIM
Data storage 32+32Mb
Physical specification
Dimensions 142.5 x 223.7 x 38.0mm
Weight 1180g
Operating environment
Operating temperature –20℃ to +60℃
Operating humidity 5%-95%, non-condensing
IP rating IP66
Feature
Bluetooth Bluetooth 4.0LE
Sensors Accelerometer
Scenarios Audible recovery, Low battery alert, Vibrating Alert, Geo-fence

* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
